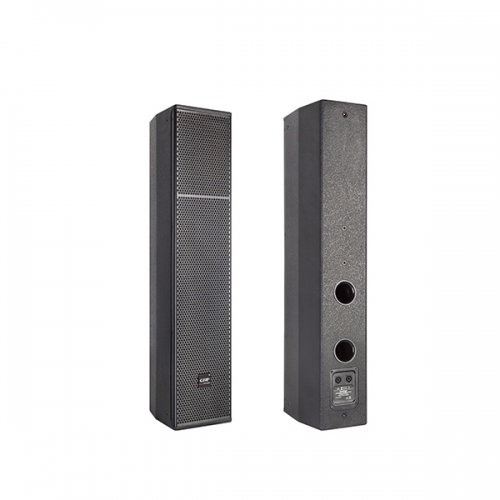

SmartRay Column Speaker

SR600MF

  • SR600MF are adopting patent designed wave guider which has Seven Sound Path into Semi-olive wave front and providing H120 ° X V10 ° dispersion angle. Both of them had equipped with 1*1.4" high performance compressed driver, the SR600MF is featuring 4*6" full range cone speaker . The HF & LF location of them are into coaxial structure to help a balance and smoothly acoustic performances. To extend more low frequency of this system , the SR181S passive subwoofer is best match. Slim, beautiful and extremely flexible set up making the system excellent operation and control, with the lowest distortion, high-quality clear high-frequency and powerful low-frequency, the system produces perfect audio sound reinforcement. The system is suitable for theater, arts center, schools, churches, multi-media hall, especially the wedding hall, etc. where Small to medium sized places request high quality sound reinforcement.

    Type SR600MF
    Frequency response 80Hz~20KHz(±3dB)
    Power handling 400W AES
    Sensitivity 95dB
    Max. SPL peak 121dB
    Dispersion 90 H x60V
    Components LF:4x6.5"(1"voice coil),HF:1x1"(1.75"voice coil)
    Nominal impedance 4ohms
    Enclosure material Birch plywood
    Finish Black ,scrath paint
    Dimension(HWD) 926×200×226mm
    Net weight(kg) 18kg
