Model |

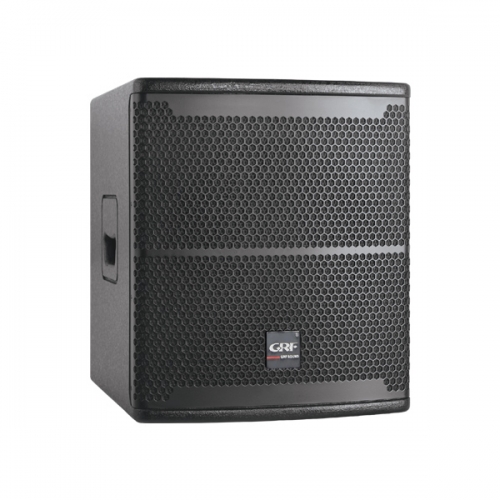

AF112B |
| Frequency Response | 40Hz~140KHz(±3dB) |
| Component | LF:1x12"(2.6"voice coil) |
|
Rated Power |
250W AES |
| Recommended Amplifier | 500W into 8ohms |
| Sensitivity | 95dB |
| Maximum SPL | 122dB/1m |
| Nominal Impedance | 8 ohms |
| Dispersion | - |
| Enclosure | Birch plywood |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Connector | 2xNeutrik NL 4 |
| Dimension(HWD) | 430x370x450mm |
| N.W. | 21kg |
